Hikmicro Gryphon GQ50L LRF Thermal
Regular price
$5,499.00
Sale

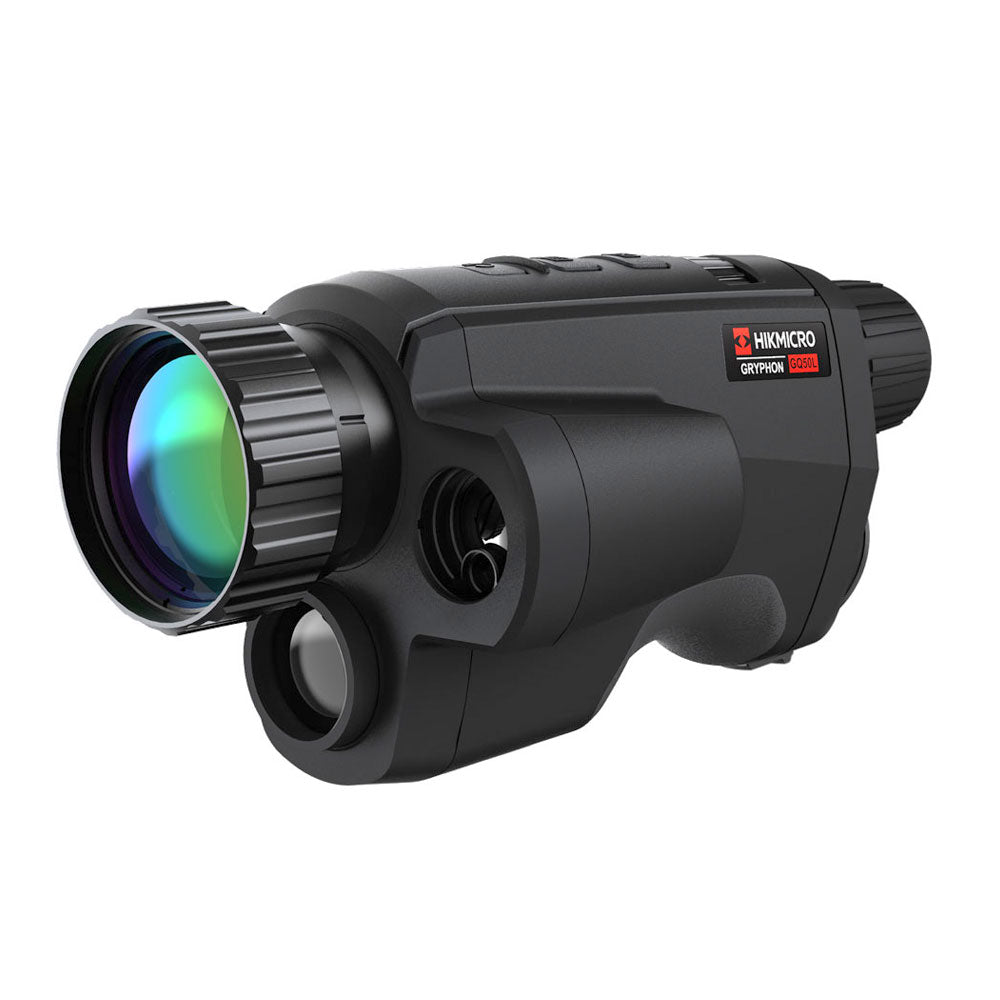

THE HIKMICRO GRYPHON GQ50L handheld thermal monocular camera is equipped with a 640 × 512 infrared detector, a 1920 × 1080 low illumination optical detector and a 1024 × 768 OLED display. It supports functions of observation, Wi-Fi hot spot, hot tracking, bi-spectrum image fusion, laser distance measurement, and so on. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, narcotic enforcement, anti-smuggling, tracing and arresting, hiking, and travel, etc.
Key Features:
640*512 resolution, high sensitivity detector
50mm lens
1920*768 resolution, 0.39-inch OLED display
Thermal, optical and fusion modes
Precision laser range finder
Specification Details
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 640 × 512
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD <35 mK (@25 °C, F# = 1.2)
Lens (Focal Length) 50 mm
Detection Range 2600 m
Focus Mode Manual
Field of View 8.78° × 7.03° (H × V)
Min. Focusing Distance 5 m
Aperture F1.2
Magnification 2.9
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×
Optical Module
Image Sensor 1/2” Progressive Scan CMOS
Focal Length 22 mm
Wavelength 400 nm to 1000 nm
Max. Resolution 1920 × 1080
Key Features:
640*512 resolution, high sensitivity detector
50mm lens
1920*768 resolution, 0.39-inch OLED display
Thermal, optical and fusion modes
Precision laser range finder
Specification Details
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 640 × 512
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD <35 mK (@25 °C, F# = 1.2)
Lens (Focal Length) 50 mm
Detection Range 2600 m
Focus Mode Manual
Field of View 8.78° × 7.03° (H × V)
Min. Focusing Distance 5 m
Aperture F1.2
Magnification 2.9
Digital Zoom 1 ×, 2 ×, 4 ×, 8 ×
Optical Module
Image Sensor 1/2” Progressive Scan CMOS
Focal Length 22 mm
Wavelength 400 nm to 1000 nm
Max. Resolution 1920 × 1080
